Product Summary

The PAS311HR-VA5R is the coin type Pas capacitor which is used as memory and RTC back-up power source for cellular phone, PDA, digital camera, portable radio and so on.

Parametrics

PAS311HR-VA5R absolute maximum ratings: (1)Operating Temp. Range: －20～+60℃; (2)Max. Usable Voltage: 3.3V; (3)Initial Capacity (μAh): Over 6; (4)Initial Internal Resistance (Ω): Below 500; (5)Max. Discharge Current (μA): 10.

Features

PAS311HR-VA5R features: (1)Reflowable with lead-free condition(Refer to Reliability Data for recommendable re?ow pattern); (2)Voltage can be set up freely below 3.3V; (3)PAS311HR is the smallest size in the world.

Diagrams

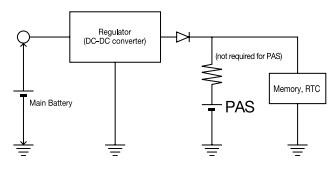

PAS311HR-VA5R application circuit
