Product Summary

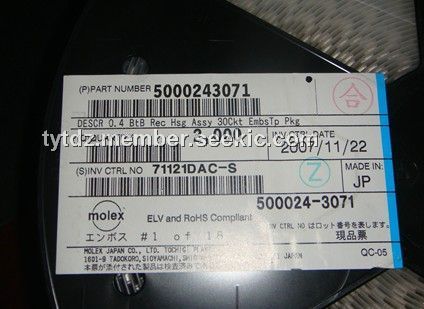

The 5000243071 is the SlimStack 0.40mm (.016") pitch header and receptacle.
Parametrics
5000243071 absolute maximum ratings: (1)Current - Maximum per Contact: 0.1A; (2)Voltage - Maximum: 50V.
Features
5000243071 features: (1)Mated Height: 0.95mm; (2)Material - Metal: Phosphor Bronze; (3)Material - Plating Mating: Gold; (4)Material - Plating Termination: Gold; (5)Material - Resin High Temperature: Thermoplastic; (6)Number of Rows: 2; (7)Orientation: Vertical; (8)Packaging Type: Embossed Tape on Reel; (9)Pitch - Mating Interface: 0.40mm; (10)Pitch - Termination Interface: 0.40mm; (11)Plating min - Mating: 0.102μm; (12)Plating min - Termination: 0.051μm; (13)Temperature Range - Operating: -25 to +85℃; (14)Termination Interface: Style Surface Mount.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 5000243071 |
|
0.4 BTB REC HSG 30CKT |
Data Sheet |
|
|
||||||||||||
