Product Summary
The BGY925N is a UHF amplifier module. The BGY925N is a three-stage UHF amplifier module in a SOT365A package. The BGY925N consists of one NPN silicon planar transistor die and two silicon MOSFET dies mounted on a metallized ceramic AlN substrate, together with matching and bias circuitry.
Parametrics
BGY925N absolute maximum ratings: (1)VS1 DC supply voltage: 28 V; (2)VS2 DC supply voltage: 28 V; (3)PD input drive power: 80 mW; (4)PL load power: 32 W; (5)Tstg storage temperature: -30 +100 ℃; (6)Tmb operating mounting-base temperature: -10 +90 ℃.
Features
BGY925N features: (1)26 V nominal supply voltage; (2)23 W output power into a load of 50 W with an RF drive power of 36 mW.

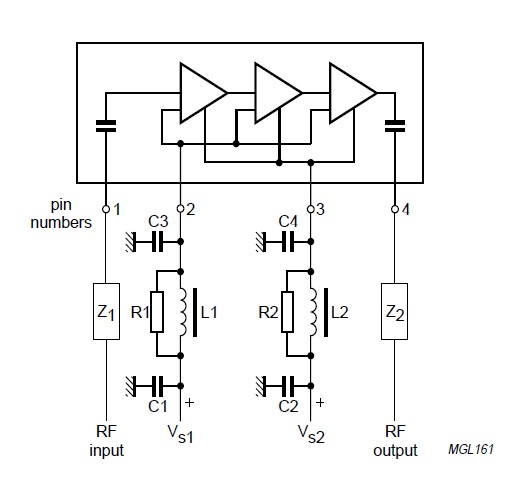

Diagrams
 |
