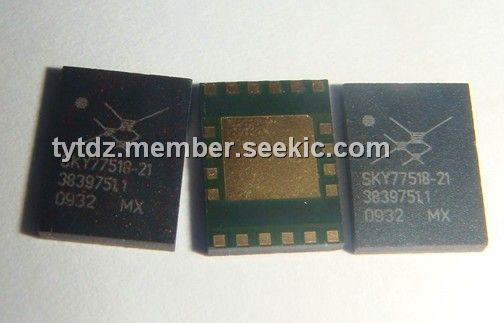

Product Summary

The SKY77518-21 is a transmit and receive front-end module (FEM) with Integrated Power Amplifier Control (iPAC) for dual-band cellular handsets comprising GSM900 and DCS1800 operation. Designed in a low profile, compact form factor, the SKY77518-21 offers a complete Transmit VCO-to-Antenna and Antenna-to-Receive SAW filter solution. The FEM also supports Class 12 General Packet Radio Service (GPRS) multi-slot operation. The two Heterojunction Bipolar Transistor (HBT) PA blocks are fabricated onto a single Gallium Arsenide (GaAs) die.

Parametrics

SKY77518-21 absolute maximum ratings: (1)Input Power (PIN): 15 dBm; (2)Supply Voltage (VCC), Standby, VRAMP ≤ 0.3 V, VLOGIC ≤ 0.5 V: 7 V; (3)Control Voltage (VRAMP): –0.5 to VCC_MAX – 0.2 V ; (4)(See Table 4) V; (5)Storage Temperature: –55 to 150 ℃.

Features

SKY77518-21 features: (1)High efficiency; (2)Low transmit supply current; (3)Internal ICC sense resistor for iPAC; (4)Closed loop iPAC; (5)50 Ω matched Input/Output; (6)TX–VCO-to-antenna and antenna-to-RX-SAW filter RF interface; (7)TX harmonics below –33dBm; (8)PHEMT RF switches afford high linearity, low insertion loss, and less than 20 μA supply current in receive; (9)modes; (10)Small outline: 6 x 8 mm; (11)Low profile: 1.1 mm; (12)Compatible with multiple logic families; (13)Low APC current: 25 μA.

Diagrams

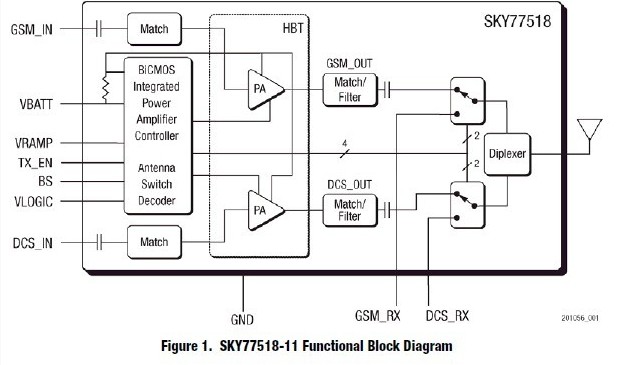

SKY77518-21 functional block diagram
