Product Summary

The 0529740604 is a kind of 0.50mm pitch PCB receptacle.

Parametrics

0529740604 absolute maximum ratings: (1)Current - Maximum per Contact: 0.5A; (2)Voltage - Maximum: 50V; (3)Surface Mount Compatible (SMC): N/A; (4)Temperature Range - Operating: -40 to +105℃; (5)Termination Interface: Style Surface Mount.

Features

0529740604 features: (1)Mated Height: 2.00mm; (2)Material - Plating Mating: Gold; (3)Material - Plating Termination: Gold; (4)Number of Rows: 2; (5)Orientation: Vertical; (6)PCB Thickness - Recommended: 1.60mm; (7)Packaging Type: Embossed Tape on Reel; (8)Pitch - Mating Interface: 0.50mm; (9)Plating min - Mating: 0.254μm; (10)Plating min - Termination: 0.406μm

Diagrams

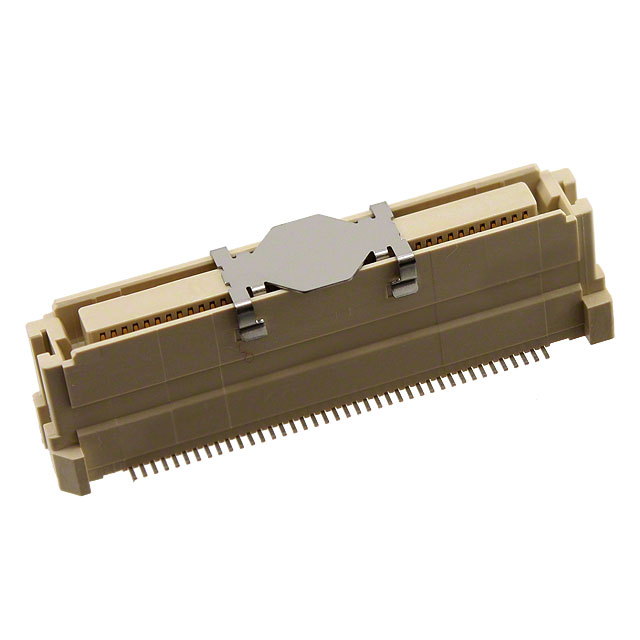

0529740604 pin

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
0529740604
0529740604

CONN RCPT 60POS VERT DL .5MM SMD
Data Sheet
0-1: $5.63
1-10: $5.14
10-25: $4.90
25-50: $4.41
50-100: $3.92
100-250: $3.56
250-500: $3.32
