Product Summary

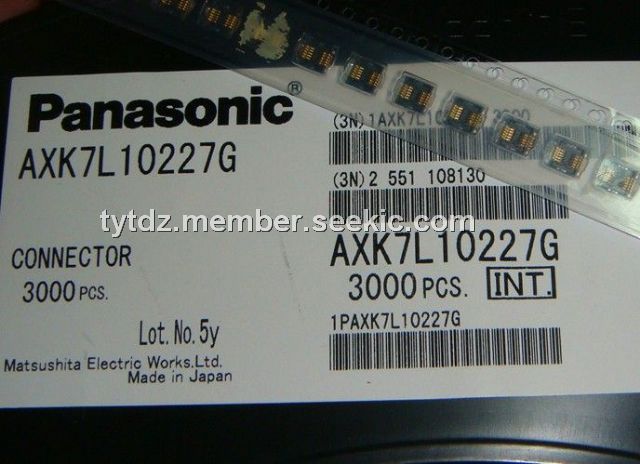

The AXK7L10227G is the narrow-pitch connector for board-to-FPC connection.
Parametrics
AXK7L10227G absolute maximum ratings: (1)Rated current: 0.3A/terminal (Max. 5 A at total terminals) ; (2)Rated voltage: 60V AC/DC ; (3)Breakdown voltage: 150V AC for 1 min.; (4)Insulation resistance: Min. 1,000MΩ (Initial) ; (5)Contact resistance: Max. 90mΩ; (6)Ambient temperature: –55℃ to +85℃; (7)Soldering heat resistance: Max. peak temperature of 260℃ (on the surface of the PC board around the connector terminals); 300℃ within 5 sec, 350℃ within 3 sec; (8)Storage temperature: –55℃ to +85℃ (Product only); –40℃ to +50℃ (Emboss packing).
Features
AXK7L10227G features: (1)The lowest profile class among two piece connectors in the world (Mated height: 0.9mm); (2)Strong resistance to adverse environments! Utilizes construction ; (3)for high contact reliability; (4)Improved mating strength between the socket and header; (5)Easy to design product circuits; (6)Connectors for inspection available.

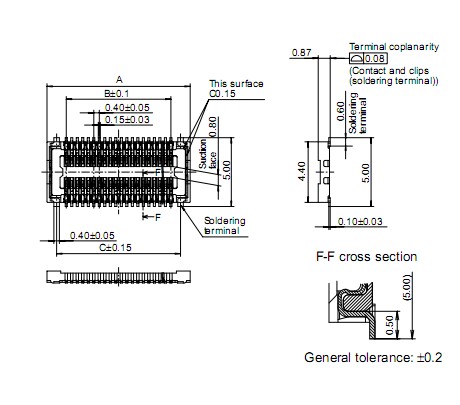

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AXK7L10227G |
Panasonic Electric Works |
Board to Board / Mezzanine Connectors CONN SOCKET F4 10 POS 0.4mm |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
AXK7 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
AXK700117G |
Panasonic Electric Works |
Board to Board / Mezzanine Connectors CONN SOCKET BRD/BRD 100 POS 0.4mm |
Data Sheet |
|
|
||||||||||||
|
AXK700125J |
Panasonic Electric Works |
Board to Board / Mezzanine Connectors Use AXK700127G |
Data Sheet |
Negotiable |
|
||||||||||||
|
AXK700125V |
Panasonic Electric Works |
Board to Board / Mezzanine Connectors Use AXK700127G |
Data Sheet |
Negotiable |
|
||||||||||||
|
AXK700127G |
Panasonic Electric Works |
Board to Board / Mezzanine Connectors |
Data Sheet |
|
|
||||||||||||
|
AXK700135J |
Panasonic Electric Works |
Board to Board / Mezzanine Connectors Use AXK700137G |
Data Sheet |
Negotiable |
|
||||||||||||
