Product Summary
The MAX4638ESE is a single 8:1 and dual 4:1 CMOS analog multiplexer/demultiplexer (muxe/demuxe). Each mux operates from a single +1.8V to +5V supply or dual ±2.5V supplies. The MAX4638ESE features 3.5Ω on-resistance (RON) when powered with a single +5V supply and have -75dB of off-isolation and -85dB crosstalk from the output to each off channel. The switching times are 18ns tON and 7ns tOFF. The MAX4638ESE features a -3dB 85MHz bandwidth and a guaranteed 0.25nA leakage current at +25℃. The MAX4638ESE is suitable for Automatic Test Equipment, Low-Voltage Data-Acquisition Systems, Audio and Video Signal Routing, Medical Equipment, Battery-Powered Equipment and Relay Replacement.
Parametrics
MAX4638ESE absolute maximum ratings: (1)(Voltages Referenced to GND), V+ to V-: +6V; V+, A_, EN: -0.3V to +6V; V-: +0.3V to -6V; (2)NO_, COM_: -0.3V to (V+ + 0.3V); (3)Continuous Current A_, EN: ±30mA ; (4)Continuous Current NO_, COM_: ±100mA ; (5)Peak Current (NO_, COM_) (pulsed at 1ms, 10% duty cycle): ±200mA; (6)Continuous Power Dissipation: 1481mW; (7)Operating Temperature Range: -40 to +85℃; (8)Junction Temperature: +150℃; (9)Storage Temperature Range: -65 to +150℃; (10)Lead Temperature (soldering, 10s): +300℃.
Features
MAX4638ESE features: (1)Guaranteed RON: 3.5Ω (+5V or ±2.5V Supplies); 6Ω (+3V Supply); (2)Guaranteed 0.4Ω RON Match Between Channels; (3)Guaranteed 1Ω RON Flatness Over Signal Range; (4)Guaranteed Low Leakage Currents 0.25nA at +25℃; (5)Switching Times: tON = 18ns, tOFF = 7ns; (6)+1.8V to +5.5V Single-Supply Operation ±2.5V Dual-Supply Operation; (7)Rail-to-Rail Signal Handling; (8)TTL/CMOS-Logic Compatible; (9)Crosstalk: -80dB (1MHz); (10)Off-Isolation: -60dB (10MHz).

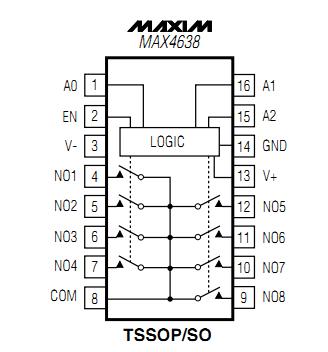

Diagrams
