Product Summary

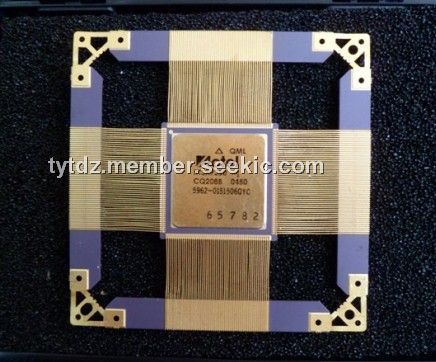

The RTSX72SU-CQ208B is a RTSX-SU rad tolerant FPGA (UMC). The RTSX72SU-CQ208B features a flexible I/O structure that supports 3.3V LVTTL, 5V TTL, 5V CMOS, and 3.3V and 5V PCI. All I/O standards are hot-swap compliant, coldsparing capable, and 5V tolerant (except for 3.3V PCI). In addition, each I/O on an RTSX-SU of the RTSX72SU-CQ208B can be configured as an input, an output, a tristate output, or a bidirectional pin. Mixed I/O standards are allowed and can be set on a pin-by-pin basis.
Parametrics
RTSX72SU-CQ208B absolute maximum ratings: (1)VCCA Supply Voltage for Array: 2.25 to 2.75 V; (2)VCCI Supply Voltage for I/Os: 3.0 to 3.6 V; (3)VIH Input High Voltage: 0.5VCCI to VCCI + 0.5 V; (4)VIL Input Low Voltage: –0.5 to 0.3VCCI V; (5)IIPU Input Pull-up Voltage: 0.7VCCI V; (6)IIL/IIH Input Leakage Current2 0 < VIN < VCCI: ±20 μA; (7)VOH Output High Voltage IOUT = –500 μA to 0.9VCCI V; (8)VOL Output Low Voltage IOUT = 1500 μA to 0.1VCCI V; (9)CIN Input Pin Capacitance: 10 pF.
Features

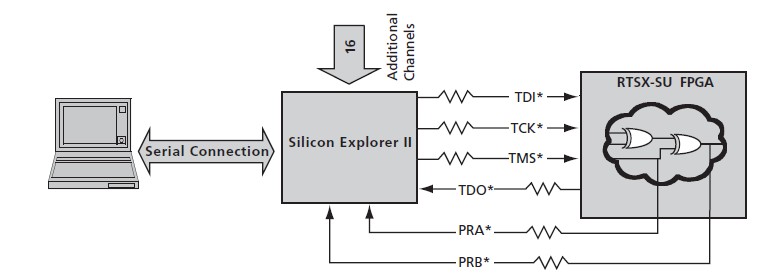

RTSX72SU-CQ208B features: (1)Secure Programming Technology Prevents Reverse Engineering and Design Theft; (2)100% Circuit Resource Utilization with 100% Pin Locking; (3)Unique In-System Diagnostic and Verification Capability with Silicon Explorer II; (4)Low-Cost Prototyping Option; (5)Deterministic, User-Controllable Timing; (6)JTAG Boundary Scan Testing in Compliance with IEEE Standard 1149.1 Dedicated JTAG Reset (TRST) Pin.
