Product Summary

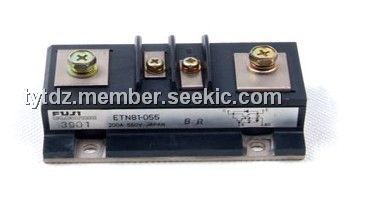

The ETN81-055 is a power transistor module. It is suitable for high power switching, AC motor controls, DC motor controls and uninterruptible power supply.

Parametrics

ETN81-055 absolute maximum ratings: (1)VCBO: 600V; (2)VCEO: 600V; (3)VEBO: 6V; (4)DC, IC: 200A; 1ms, ICP: 400A; DC, -IC: 200A; (5)DC, IB: 12A; 1ms, IBP: 24A; (6)one transistor, PC: 1000W; (7)Tj: 150℃; (8)Tstg: -40 to 125℃; (9)m: 450g; (10)Viso: 2500V.

Features

ETN81-055 features: (1)including free wheeling diode; (2)high DC current gain; (3)insulated type.

Diagrams

ETN81-055 equivalent circuit schematic
